TASCAM DR-05X
Customer Care -

TASCAM DR-05X

TASCAM DR-05X

TASCAM DR-05X

  • Vendor: Bliaudio-spr
  • Shipping Origins: Jakarta Barat, DKI Jakarta
  • Product Code: TASCAM DR-05X
  • Availability: In Stock
  • Rp 1,995,000

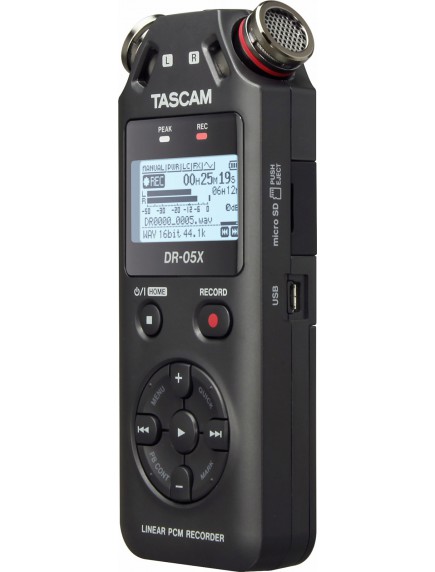

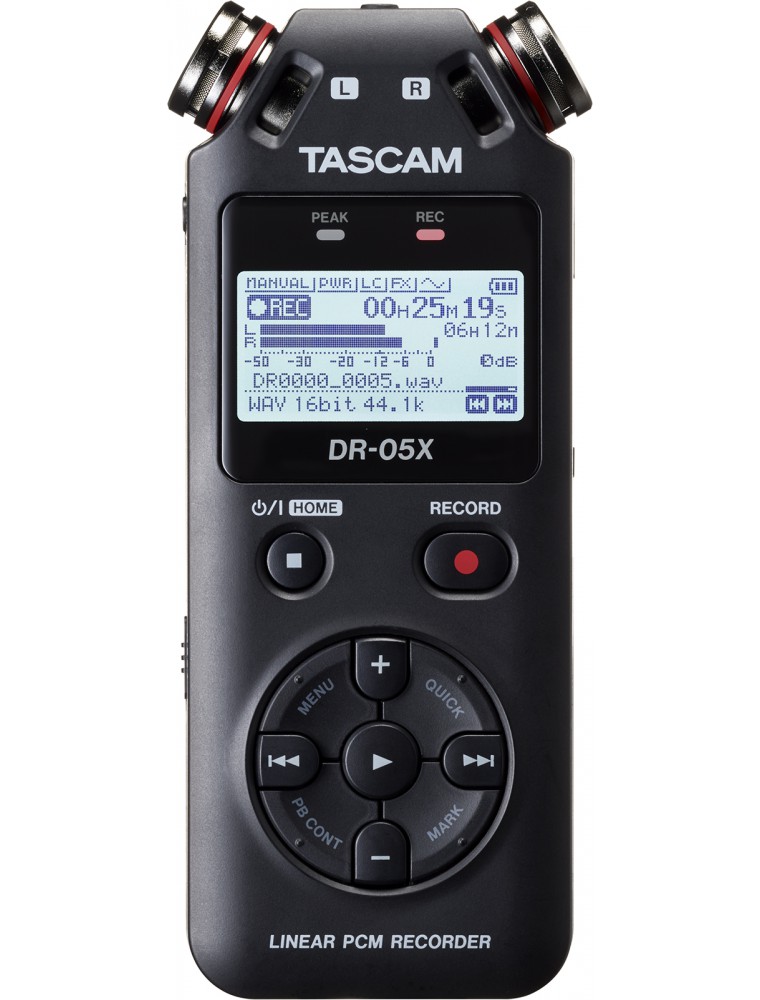

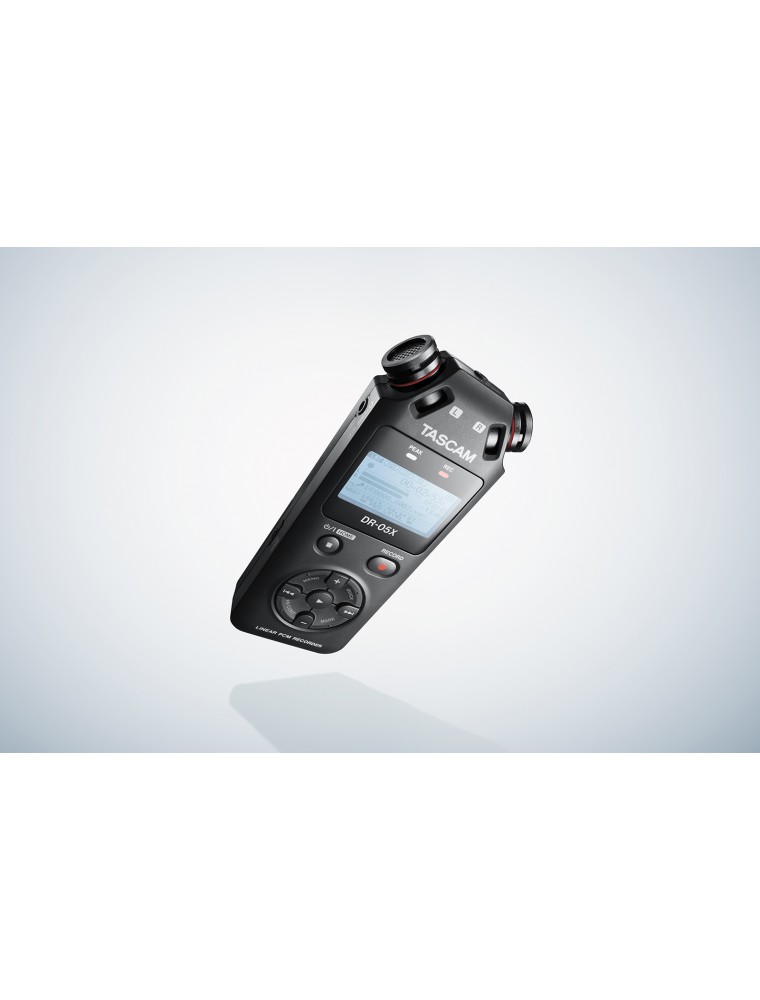

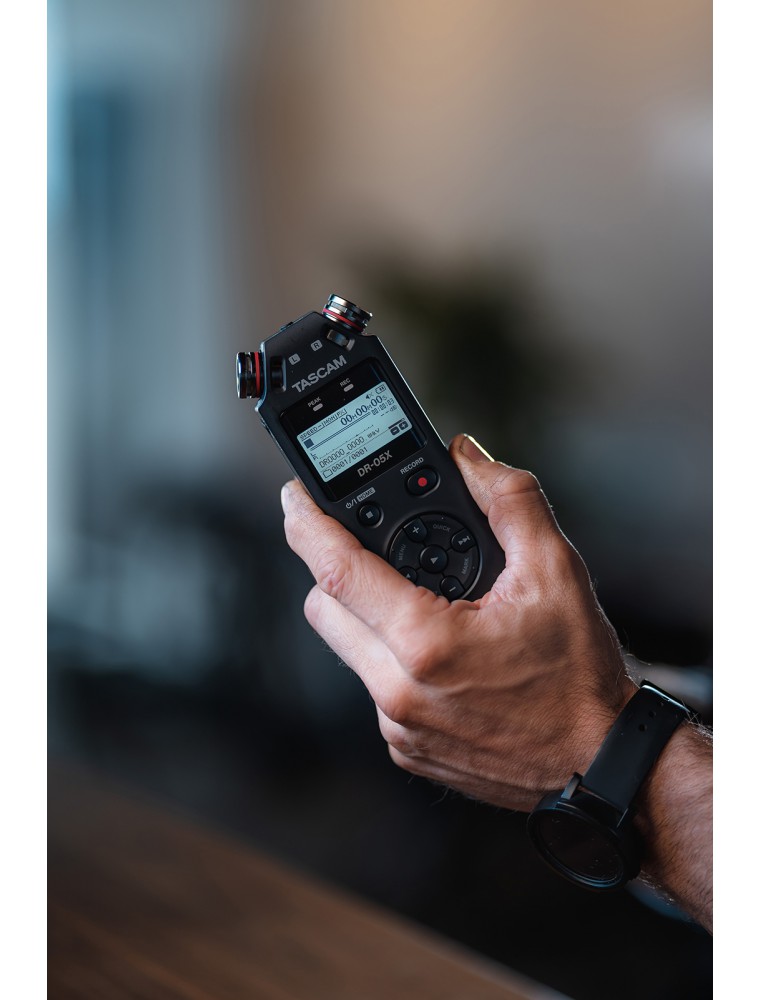

The new standard in stereo hand held recorders

The DR-05X is the new standard in stereo hand held recorders with its powerful features, simple interface and excellent sound quality. It is the first choice for recording meetings, music, audio-for-video, dictation, and more.

Spec description

Recording Media microSD card (64MB to 3GB), microSDHC card (4GB to 32GB), microSDXC card (up to 128GB)
File System FAT16/32, exFAT
Recording File Format
WAV / BWF
Sampling Frequency 44.1k / 48k / 96k Hz
Bit-depth 16 / 24-bit
MP3
Sampling Frequency 44.1k / 48k Hz
Recording Bit-rate 32k / 64k / 96k / 128k / 192k / 256k / 320k bps
Playback Bit-rate 32k to 320k bps, VBR, ID3TAG Ver. 2.4
Number of Channels 2-channel (Stereo) / 1-channel (Mono)
Playback speed control 0.5 to 2.0 times (in 0.1 increments) * 44.1k/48kHz only
Built-in Microphone Omnidirectional, Stereo
MIC/EXT IN
Connector 1/8" (3.5mm) Stereo Mini jack (Unbalanced, Plug-in Power)
Nominal Input Level -20dBV
Maximum Input Level -4dBV
Input Impedance 18kΩ or more (PLUG IN PWR: OFF)
2kΩ or more (PLUG IN PWR: ON)
PHONES/LINE OUT
Connector 1/8" (3.5mm) Stereo Mini jack (Unbalanced)
for LINE connection
Nominal Output Level -14dBV (10kΩ load)
Maximum Output Level +2dBV (10kΩ load)
Output Impedance 12Ω
for Headphones connection
Maximum Output Power 20mW + 20mW (32Ω load)
USB
Connector USB Micro B-type
Format USB2.0 HIGH SPEED
Built-in Speaker 0.3W, Mono
Low-cut Filter 40 / 80 / 120Hz
Chromatic Tuner C1 to B6, A4 = 435Hz to 445Hz (in 1Hz increments)
Effector 6 presets (Hall 1, Hall 2, Room, Studio, Plate 1, Plate 2)
Tripod attachment screw-hole 1/4" Tripod attachment screw-hole
Power 2 AA Batteries, USB bus power, AC 100 to 240V (optional AC Adapter)
Power Consumption 1.7 W (Max)
Battery Operation Time (Recording)
Alkaline (EVOLTA) approx. 17.5 hours (2ch WAV, 44.1kHz, 16-bit, using Built-in Microphone, JEITA)
Ni-MH (eneloop) approx. 15.5 hours (2ch WAV, 44.1kHz, 16-bit, using Built-in Microphone, JEITA)
Dimensions (W×H×D) 2.4" × 5.55" × 1.02" / 61 × 141 × 26 mm
Weight 4.1 oz. / 116 g



Audio Performance

Frequency Response
Fs 44.1kHz 20Hz to 20kHz, +0/-1dB (EXT IN to LINE OUT, JEITA)
Fs 48kHz 20Hz to 22kHz, +0/-1dB (EXT IN to LINE OUT, JEITA)
Fs 96kHz 20Hz to 40kHz, +0/-1.5dB (EXT IN to LINE OUT, JEITA)
Total Harmonic Distortion 0.01% or less (Fs 44.1k/48k/96kHz, EXT I Not LINE OUT, JEITA)
Signal-to-Noise Ratio 94 dB or higher (Fs 44.1k/48k/96kHz, EXT I Not LINE OUT, JEITA)



Supported OS'

Windows

Windows 10 (October 2020 Update) , Windows 10 (May 2020 Update) , Windows 8.1 , Windows 7

Mac

macOS Big Sur , macOS Catalina , macOS Mojave , macOS High Sierra (10.13) , macOS Sierra‎ (10.12)

iOS

iPadOS 14 , iOS 14 , iPadOS , iOS 13 , iOS 12 , iOS 11
