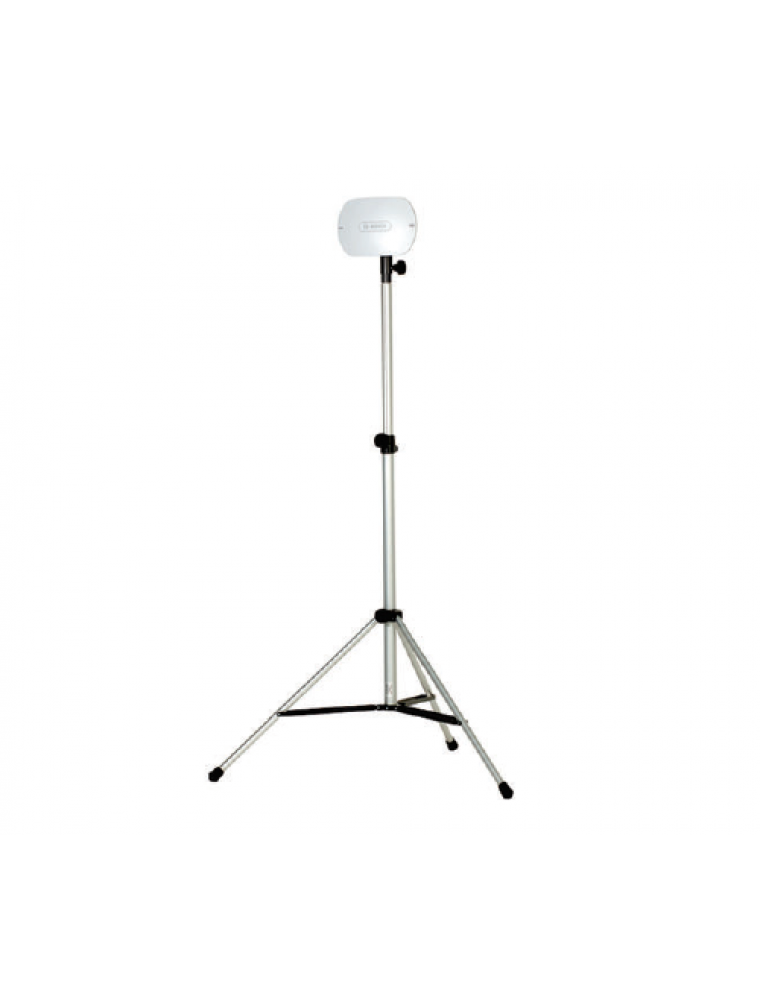

DCNM-WAP Wireless access point

Easy to use

• Truly wireless, no need for an additional WiFi router for tablet control.

• Easy and intuitive web browser interface for system setup, configuration, control and licensing.

• Native support for camera control.

• Range test function to guarantee that all Wireless Devices are in range, independent of the selected WiFi frequency.

• Remote interfacing using API to control microphones and third‑party camera systems.

Zero Interference

• Seamless automatic wireless frequency channel switching.

• Operates in the (license‑free) bands:

– 2.4 GHz.

– 5 GHz (UNII‑1, UNII‑2, UNII‑2 extended, and UNII‑3).

• Packet Loss Concealment to mask the effects of lostor discarded packets.

Standard WiFi

• Visibility in the IT infrastructure.

• Co‑existence with other WiFi networks.

General

• Powering via either: Power supply adapter, Power over Ethernet (PoE) or DCN multimedia System Network Cable.

• Typical wireless coverage area range of 30 m x 30 m.

• Functionality is modular expandable via licensing.

Web interface

• The DCNM‑WAP supports the following software functions which are available via the web browser interface (some functions are not supported when a tablet device is used).

System cameras

• For giving a clear visual overview of the proceedings.

• Native support for a maximum of six HD Conference

Domes with SDI connection can be connected to the system.

Standard configuration

• User management, which gives the possibility to create several users with user specific access to functionality.

• Line input/output and routing settings
