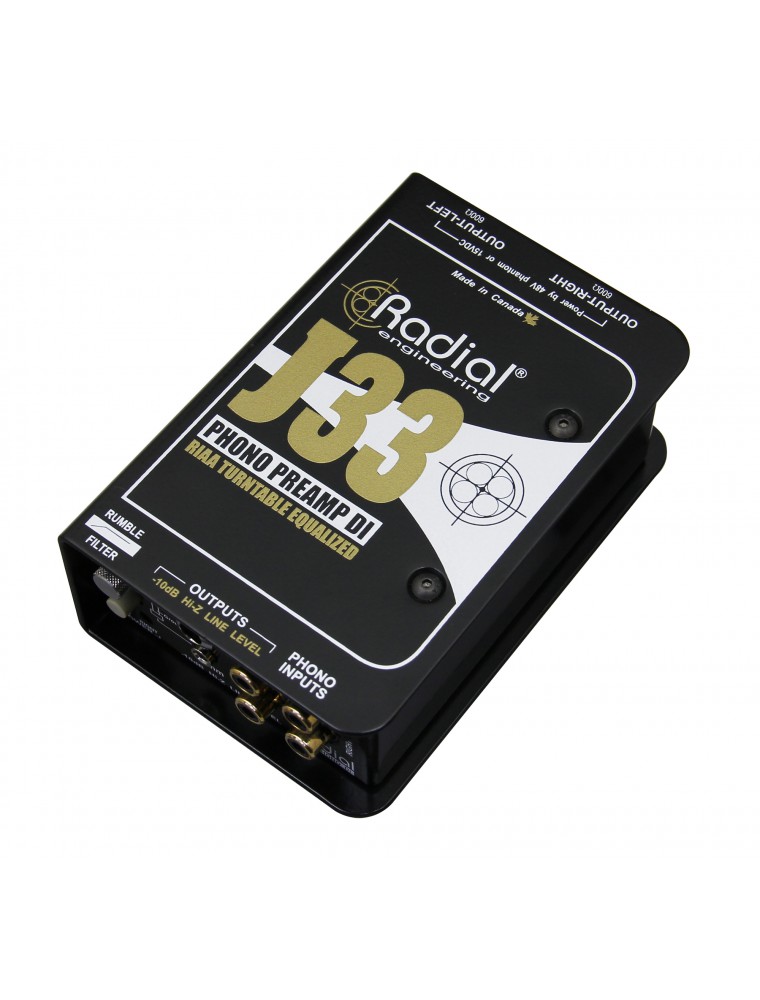

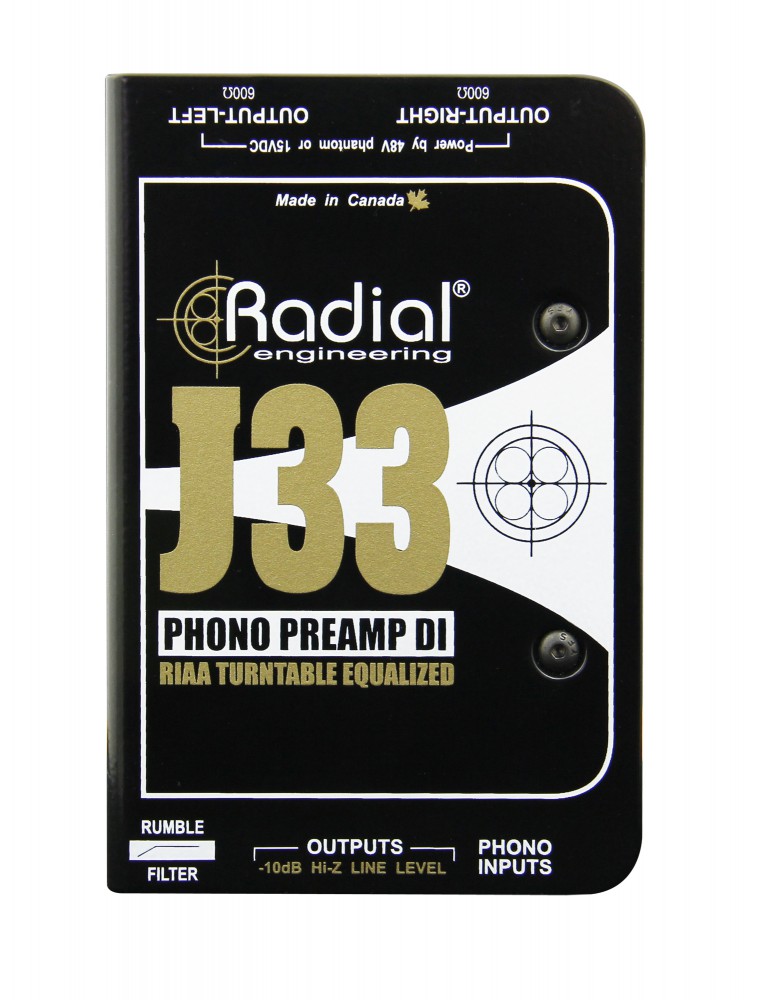

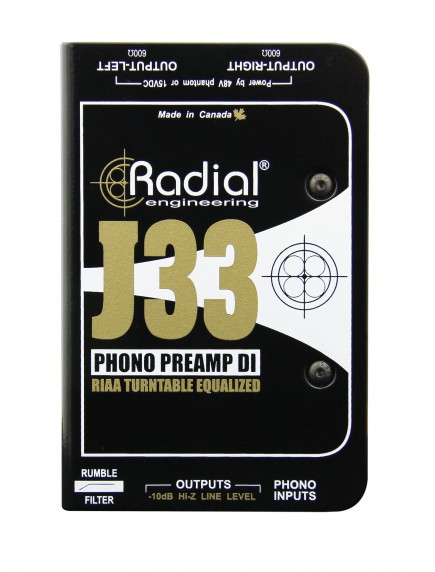

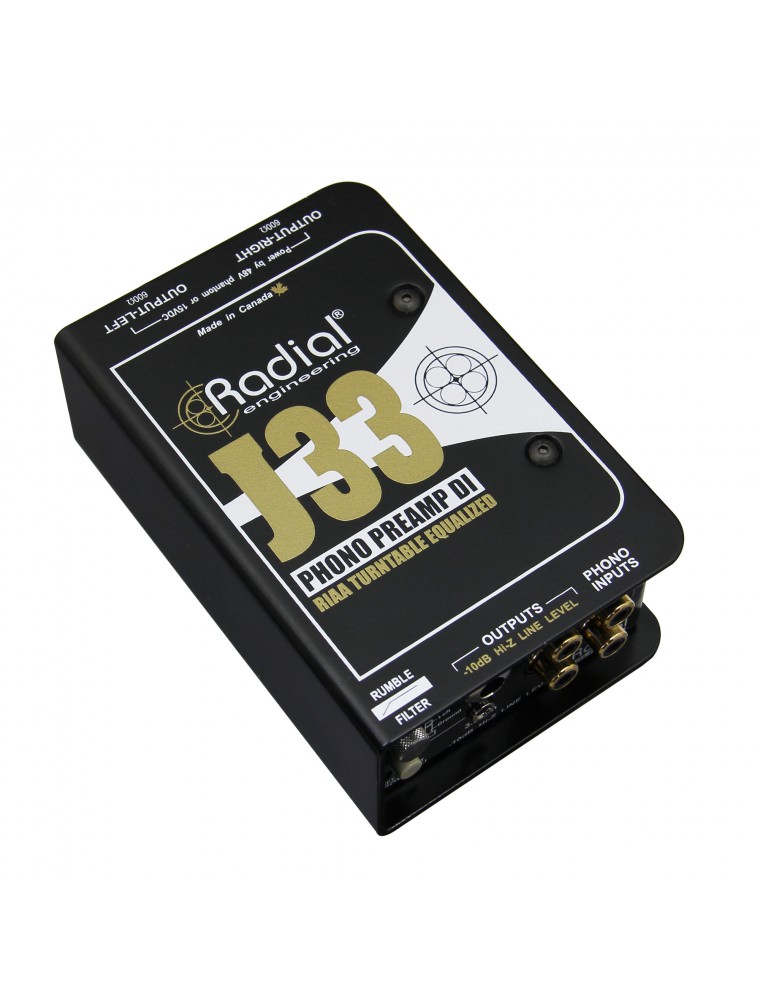

RADIAL J33 Active Turntable Preamp & DI Box

RADIAL J33 Active Turntable Preamp & DI Box

RADIAL J33 Active Turntable Preamp & DI Box

  • Vendor: Bliaudio-skr
  • Shipping Origins: Jakarta Utara, DKI Jakarta
  • Product Code: RADIAL J33 Active Turntable Preamp & DI Box
  • Availability: In Stock
  • Rp 4,232,000

The J33™ combines a high quality turntable (phono) preamp with a DI box, providing consumer line-level outputs in addition to balanced mic-level outputs that allow you to connect a record player to pro audio equipment such as mixing consoles and recording interfaces.

The Radial J33 is a combination stereo phono preamp and direct box designed for dynamic cartridges. Careful attention has been paid to delivering a smooth sounding RIAA transfer curve while keeping noise down to the absolute minimum for the noise-prone world of 33 RPM long-play records. Both unbalanced consumer line level and balanced mic level outputs are supported.

Specifications
Audio circuit type:Active circuit
Number of channels:Stereo
Frequency response:RIAA response curve for phonographic playback
Dynamic range:91dB
Total harmonic distortion:0.002% @ 1kHz (-33dBu input level)
Intermodulation Distortion:0.025% @ -45dBu input
Input Impedance:47k Ohms, unbalanced
Output Impedance:XLR out: 600 Ohms; ¼", 3.5mm, RCA outs: 470 Ohms
Equivalent Input Noise:-82dBu @ 0dBu output
Maximum Input:-30dBu @ 1kHz
Voltage Gain:+37.8dB
Features
HPF

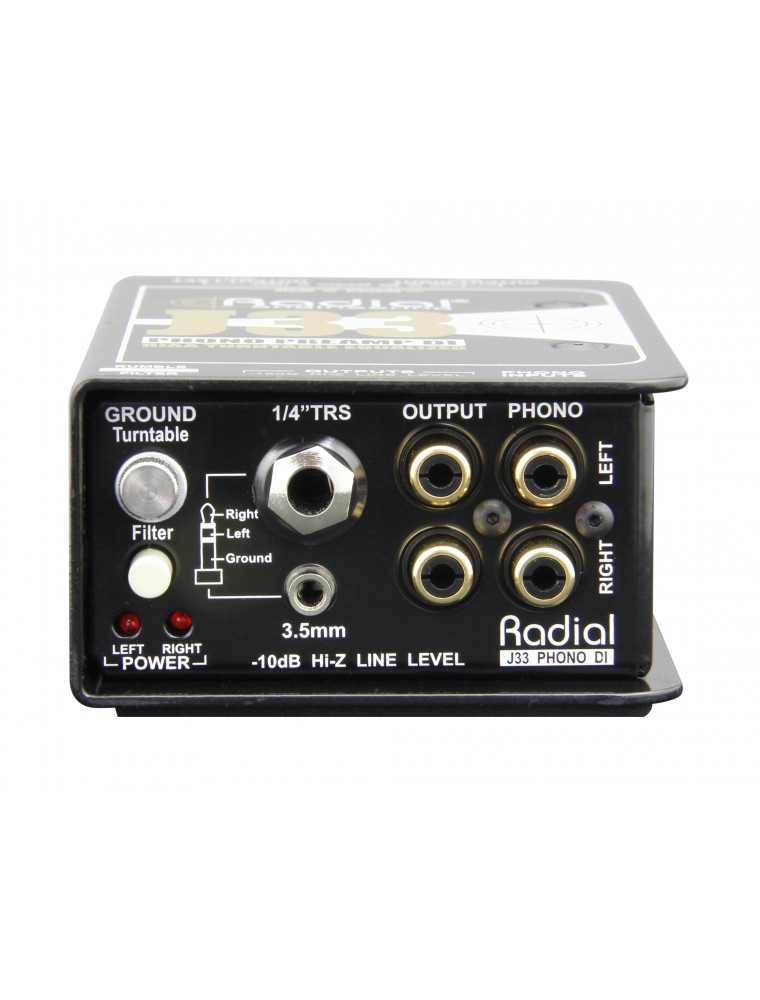

Input Connectors:RCA

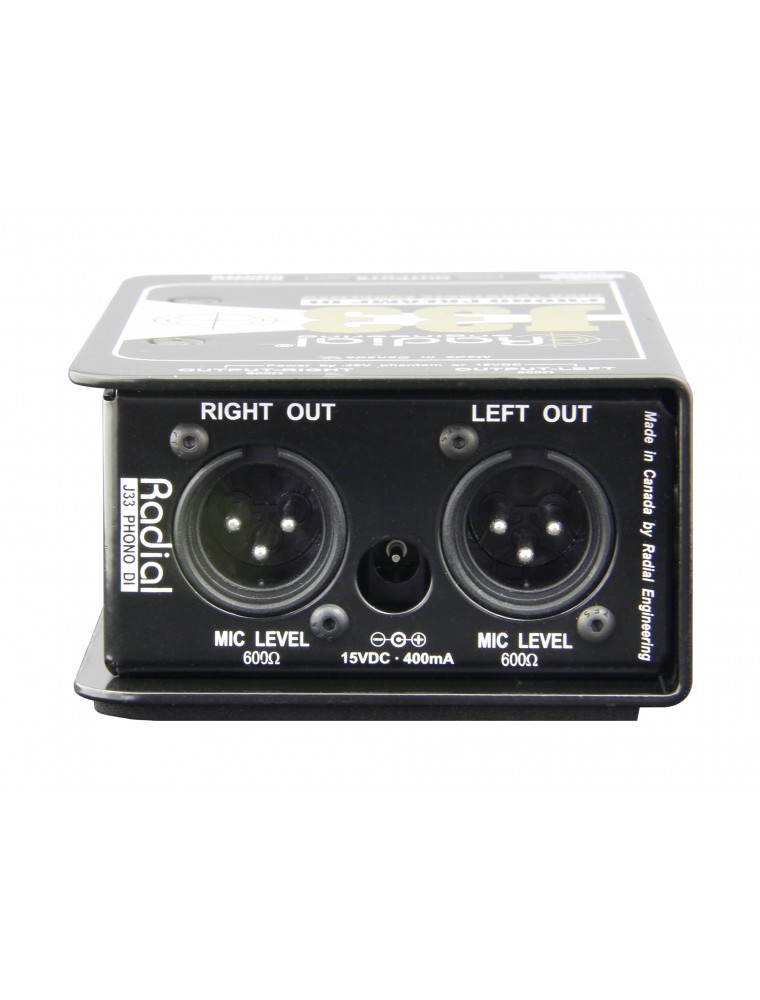

Output Connectors:RCA, 1/4", 3.5mm, XLR
Extras:Rumble Filter
General
Construction:14-gauge steel chassis and outer shell
Size (L x W x D):5" x 6.25" x 2" (127 x 159 x 51mm)
Weight:2.80lbs (1.28 kg)
Power:+48V phantom or +15VDC/400mA external supply (included)
Conditions:For use in dry locations only between 5°C and 40°C
