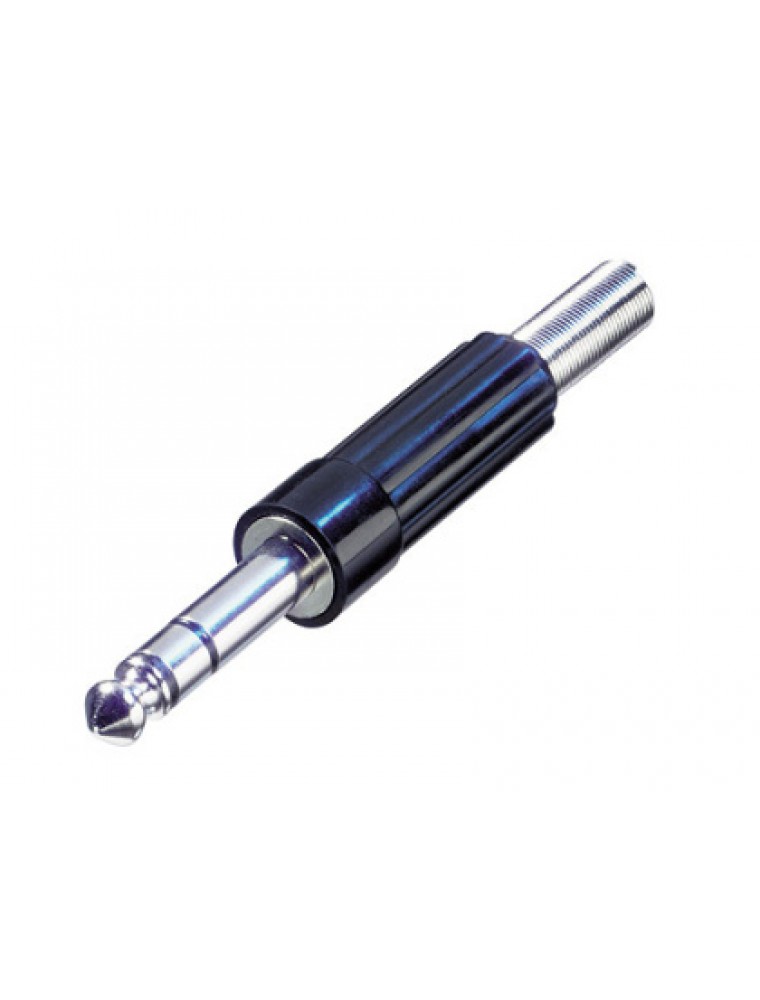

3 pole 1/4'' plug, plastic handle with flexible strain relief

Title NYS204

Connection Type Plug

Gender male

Electrical

Dielectric strength 0.5 kVdc

Insulation resistance ≥ 1 GΩ

Contact resistance depends on mating connector

Rated current depends on mating connector

Transmission Performance null

Mechanical

Cable O.D. ≤ 6 mm

Lifetime 1000 mating cycles

Wiresize

Wiresize 24 AWG

Material

Bushing Steel sp.

Contact plating 2 µm Ni

Contacts Brass (CuZn39Pb3)

Shell ABS

Insulation Thermoplastic

Strain relief Crimp type SnCe plated

Environmental

Solderability Complies with IEC 68-2-20

Temperature range -20 °C to +70 °C
