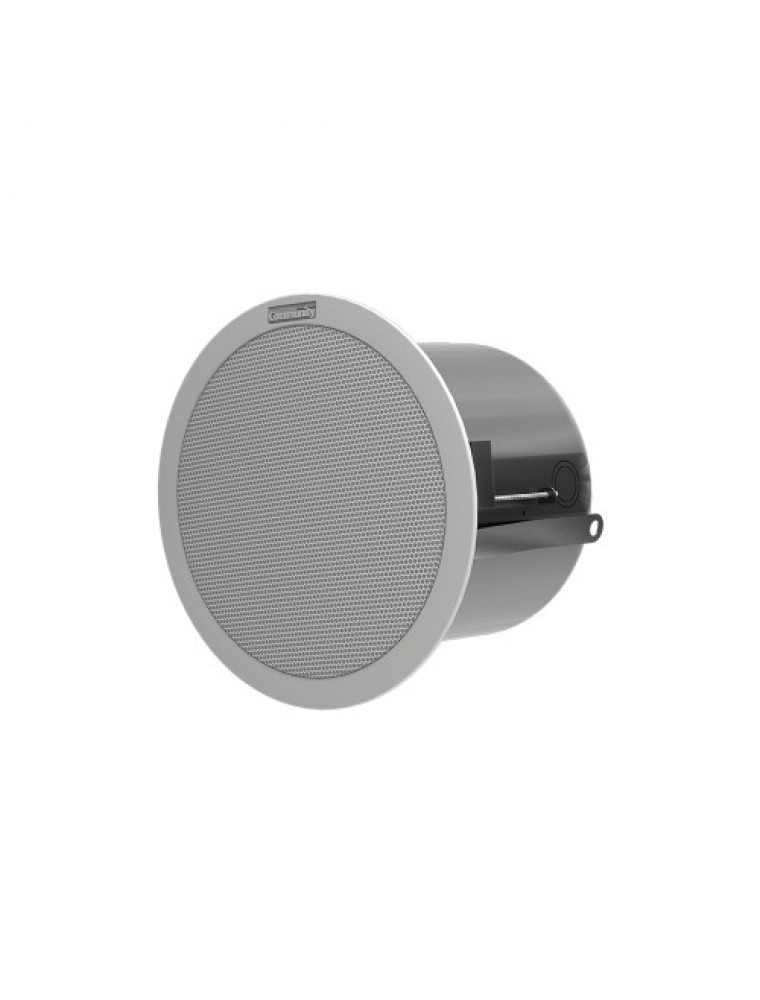

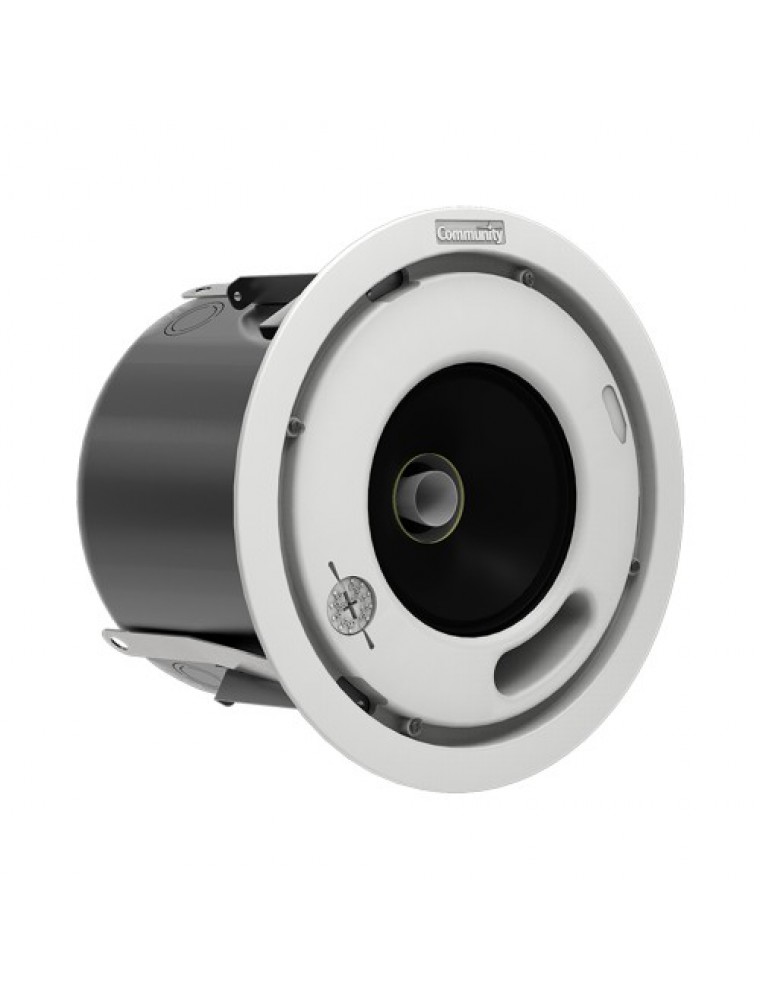

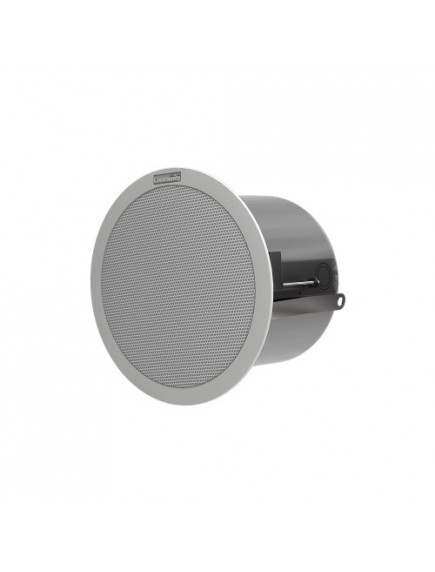

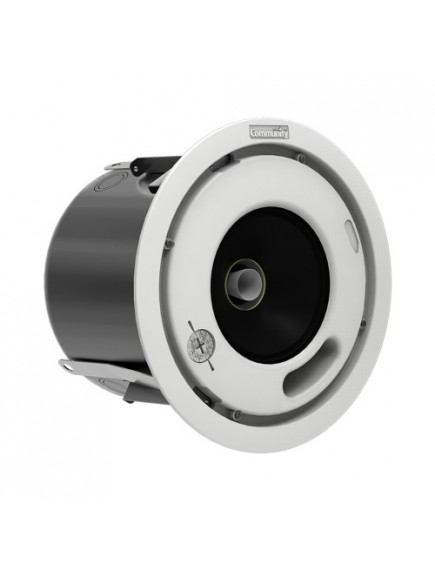

Community D5 White 5 inch Ceiling Loudspeakers
Customer Care -

Community D5 White 5 inch Ceiling Loudspeakers

Community D5 White  5 inch Ceiling Loudspeakers

Community D5 White 5 inch Ceiling Loudspeakers

  • Vendor: Bliaudio-sgh
  • Shipping Origins: Jakarta Pusat, DKI Jakarta
  • Product Code: Community D5 White
  • Availability: In Stock
  • Rp 3,110,000

This product has a minimum quantity of 2

The D5 has a more focused dispersion, higher sensitivity and output than the smaller D4. The high performance D5 is a true coaxial loudspeaker with a real compression driver concentrically arranged so that the upper frequencies emerge through the center of the low-frequency driver’s magnetic structure and cone via a precisely tapered Tru-Phase™ high-frequency waveguide. This special construction provides consistent, wide dispersion up to 16 kHz, all but eliminating high-frequency narrowing. Further pattern improvement is achieved by precisely mounting the low frequency driver (and its concentric HF driver) centered in the baffle, as contrasted to the offset designs used by others.

The D SERIES offers powerful magnetic structures and efficient coils to ensure high output, which results in more headroom per power amplifier.  Each D SERIES ceiling model includes everything needed for standard installations, and has a built-in autoformer allowing it to be used in 8-ohm or 70V/100V applications. The D SERIES ceiling loudspeakers are ETL listed and all models have been tested by ETL to comply with UL1480, UL2043 and CSA60065.

*** Harga yang tercantum adalah harga satuan (1 unit) Minimal pengambilan 2 pcs.


- Superb intelligibility with reduced distortion, uniform voicing

- Easy installation with Drop-Stop™ and Twist-Assist™ features

- Carbon Ring Cone Technology and Tru-Phase™ waveguide

- Sensitivity (1W/1m): 93 dB

Spesifikasi :

- Power Handling: 100W continuous @ 8 ohms

- Continuous Max Output: 113 dB (119 dB Peak)

- 70V/100V Autoformer: 60W, 30W, 15W, 7.5W (@70V only)

- Nominal Beamwidth (H x V): 130° Conical

- Finish: Corrosion-resistant zinc plated steel can, white paintable ABS baffle, white powder-coated steel grille

- Dimensions (H x Dia): 6.8" x 9.8" (172 x 248 mm)

- Operating Range: 65 Hz – 22 kHz

- Transducers: LF - 1 x 5”, HF - 1 x 1” exit compression driver
