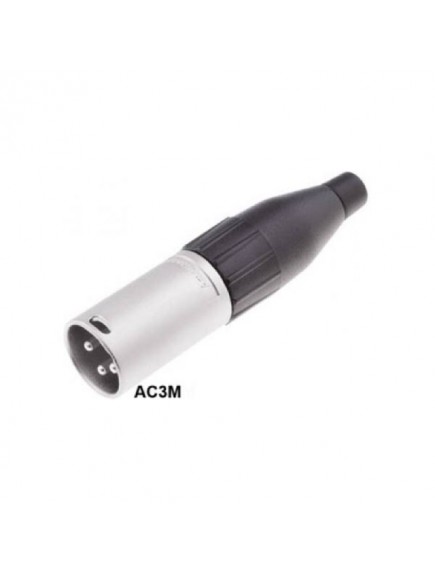

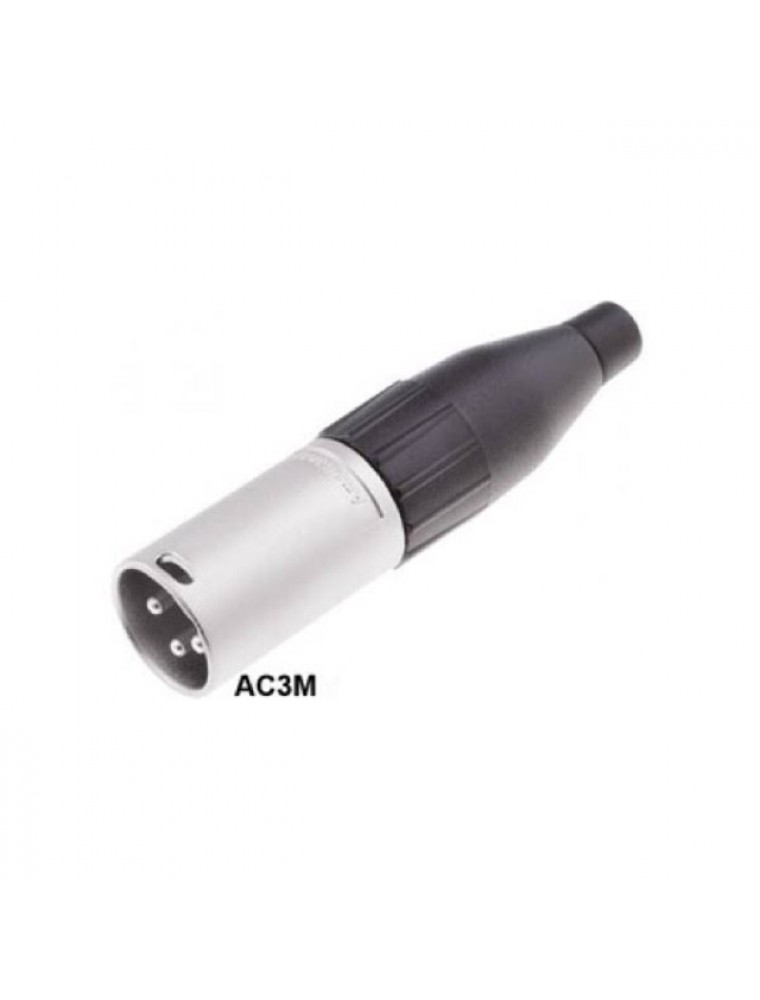

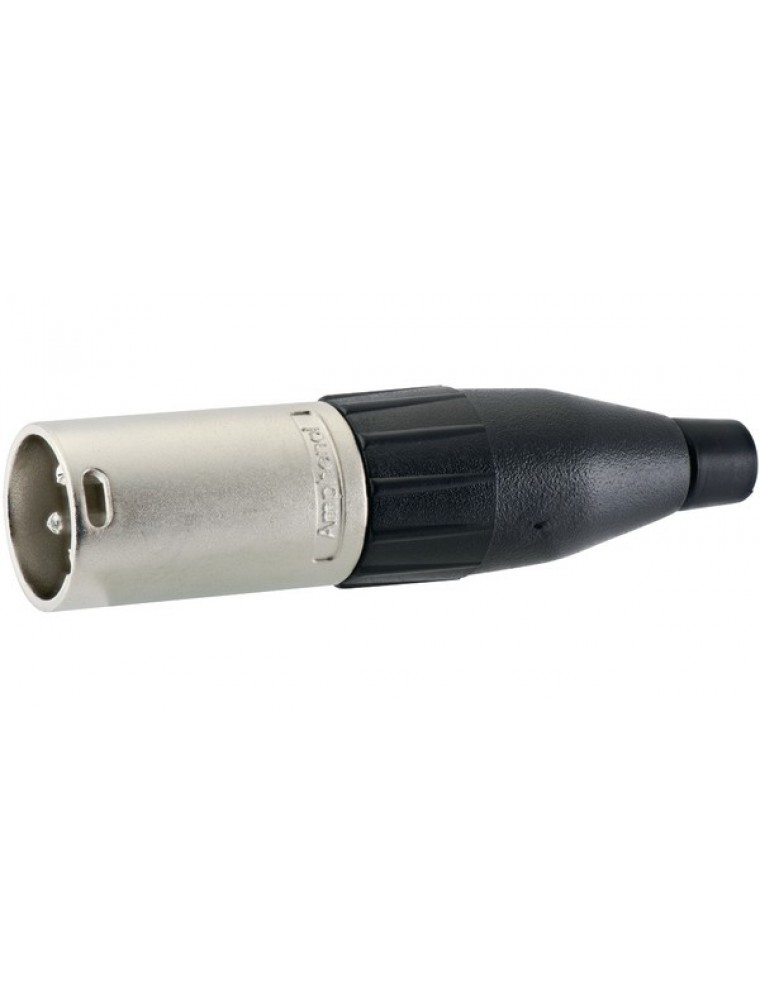

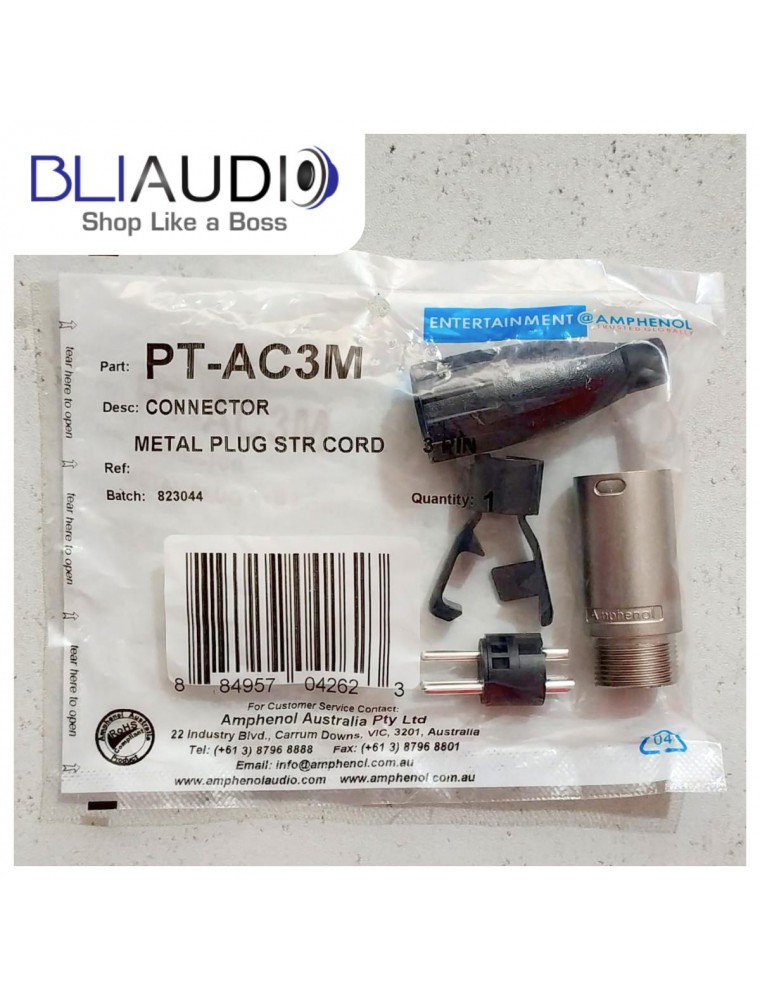

Amphenol AC3M Male XLR Connector
-760x1000.jpg "Amphenol AC3M Male XLR Connector")
Amphenol AC3M Male XLR Connector
- Pengirim: Bliaudio-skr
- Asal Pengiriman: Jakarta Utara, DKI Jakarta
- Kode Produk: Amphenol AC3M Male XLR Connector
- Tersedia: Dalam Stok
-
Rp 31.200
SPECIFICATIONS:
Finish:Nickel
Positions:3
Gender:Male
Contact Plating:Silver
Contact Type:Stamped
IP Rating:IP40
Current Carrying Capacity:15A
Termination:Solder
Max Wire Gauge:14AWG
Flammiability Rating:UL94V-0
Environmental:Complies with EU RoHS 2 Directive 2011/65/EU
Service Voltage RMS:133V (not suitable for domestic applications above 50V)
Test Voltage AC RMS:1400V
Typical Contact Resistance:< 3m?
Insulation Resistance:< 1G?
Operating Temperature:-25C to +75C
Insertion and Withdrawal Force:> 10N - < 30N
Typical Cable Retention Force:Approximately 22Kg to 44Kg, depending on cable material and diameter
Cable OD Range:3mm to 6.5mm (0.11" to 0.255")
Cable OD Range Large Solder:6.5mm to 8mm (0.255" to 0.314")
Mating Cycles:1000
Housing Material:Diecast Zinc Alloy
